1500W 2000W 3000W Handheld Laser Welding Machine For Aluminum Sheet Carbon Steel

Product Categories

Taiyi Laser Technology Company Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 1500W 2000W 3000W Handheld Laser Welding Machine For Aluminum Sheet Carbon Steel
Brand: TAIYI
Price: 3180 USD

Brand Name : TAIYI

Model Number : TY-H1500HS

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD3180-USD5800

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500 Sets per Month

Delivery Time : 7-15 working days

Packaging Details : Export standard packing

Laser Power : 1500W 2000W 3000W optional

Laser Source : Raycus MAX IPG BWT optional

Laser Welding Head : Raytools

Laser Wavelength : 1070nm

Warranty : 2 Years

Application Material : Metal

Cooling System : Water Cooling

Weight : 65KG

Dimensions : 1015*590*1051mm

Power Supply : 220V/380V/50Hz/60hz

Contact Now

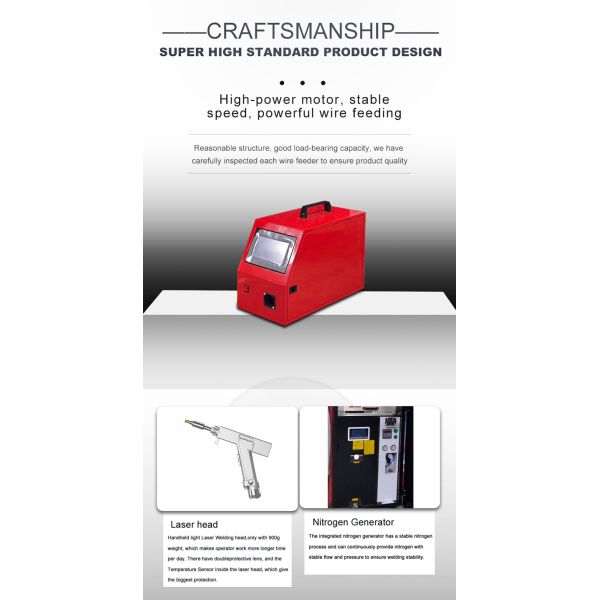

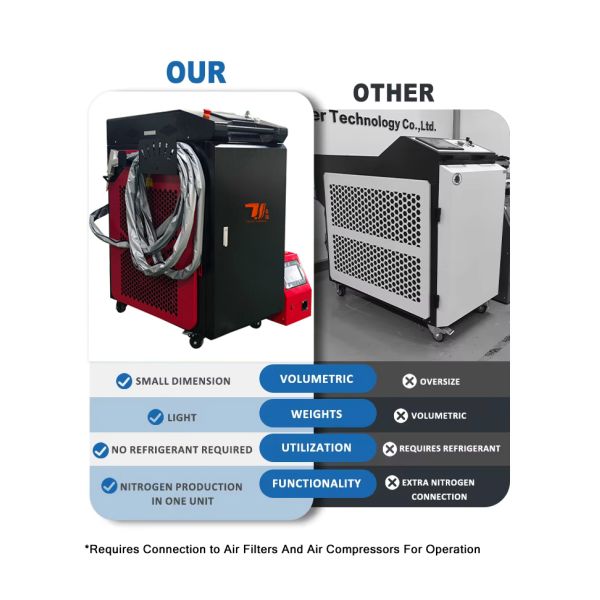

New Product Integrated N2 Nitrogen Generation System Handheld Fiber Laser Welding Machine

1500W 2000W 3000W Handheld Laser Welding Machine For Aluminum Sheet Carbon Steel

Product Name	Integrated Nitrogen Generation System Laser Welding Machine
Laser Power	1500W/2000W/3000W optional
Laser Wavelength	1070nm
Welding Method	Continue
Welding Gap	≤0.5MM
Welding Thickness	0.5-10mm
Welding Speed	0-120 mm/s
Working Humidity	<70%
Fiber Length	10M
Cooling Method	Water Cooling
Nitrogen concentration	99.99%
Intake pressure	0.6-0.8MPa
Nitrogen gas pressure	0.5-0.8MPa
Rated intake	1m³/min
Voltage	220V/380V 50Hz/60Hz

Welding Thickness Comparison Table(mm)
Water-Cooling Handheld Laser Welding machine
Power	Stainless Steel	Carbon Steel	Aluminum	Galvanized Steel
1500W	0.8~4.0	0.8~4.0	0.3~2.0	0.5~3.0
2000W	1.0~5.0	1.0~5.0	0.5~3.0	1.0~4.0
3000W	1.5~7.0	1.5~7.0	1.0~4.0	1.5~5.0
6000W	3.0~12.0	3.0~12.0	2.0~6.0	2.5~8.0
Air-Cooling Handheld Laser Welding machine
Power	Stainless Steel	Carbon Steel	Aluminum	Galvanized Steel
800W	0.3~1.5	0.3~1.5	0.1~0.8	0.3~1.2
1200W	0.5~2.5	0.5~2.5	0.2~1.0	0.5~2.0
1750W	0.8~3.0	0.8~3.0	0.3~1.5	0.8~2.5
2000W	1.0~4.0	1.0~4.0	0.5~2.0	1.0~3.5

1500W 2000W 3000W Handheld Laser Welding Machine For Aluminum Sheet Carbon Steel
